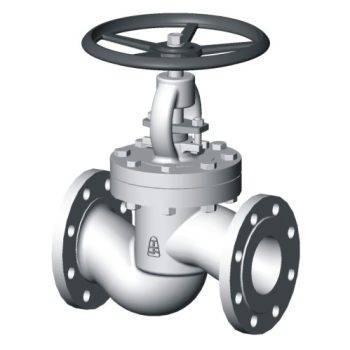

Shut-Off Globe Valve C09/C09.4

Description:
– shut-off globe valve C09 and shut-off globe valve with control cone C09.4
– rotating rising stem
– standard bonnet construction
– design of the body is straight
– sealing surface is welded by hard facing (13Cr) or Stellite 6 (expect for stainless steel types)
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part2

Design options:
– control cone (for rough control) – type C09.4
– according to TRD 201
– TA-Luft

CATALOG SHEET

PN

10–40

DN

15–200

Working temperature

-50–400 °C

Medium

water, steam, gas, oil, petroleum products, non-aggressive and aggressive substances

Material

1.4308, 1.4408, 1.1138, 1.0619

Connection

flanged, weld ends

Operating

handwheel, gearbox, electric actuator (on request: remote control, pneumatic actuator)
