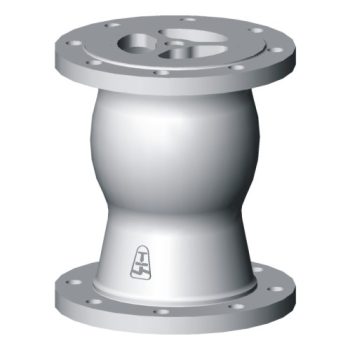

Lift Check Valve Z35

Description:
– check valve to vertical pipe
– design of the body is straight sealing
– check valve disc
– for DN 80 and DN 125 only up to PN 100
– sealing surface is welded by hard facing (13Cr)
– complies with the requirements of the directive 2014/68/EU
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– according to TRD 201

CATALOG SHEET

PN

16–250

DN

65–150

Pracovní teploty

-10–300 °C

Médium

water, non-aggressive substances

Materiál

1.0619

Připojení

flanged

Ovládání

self-acting control
