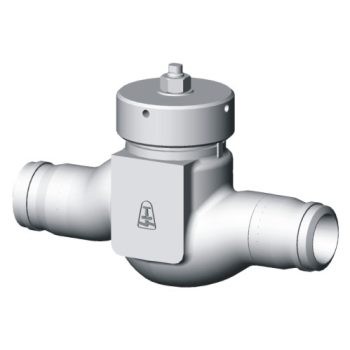

Lift Check Valve Z15

Description:
– high-pressure lift check valve
– design of the body is straight sealing
– check valve disc
– sealing surface is welded by hard facing (13Cr) or Stellite 6
– complies with the requirements of the directive 2014/68/EU and standard EN 16767
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– branch from forged materials
– according to TRD 201 – on request

CATALOG SHEET

PN

160–400

DN

65–150

Working temperature

-10–550 °C

Medium

water, steam, oil, petroleum products, non-aggressive substances

Material

1.7357, 1.0619

Connection

weld ends, flanged, combination

Operating

self-acting control
