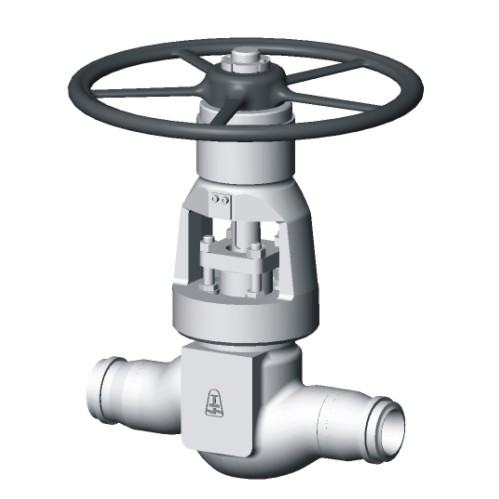

High-Pressure Shut-Off Globe Valve V58/V43

Description:
– high-pressure shut-off globe valve V58 and high-pressure shut-off globe valve with contol cone V43
– non-rotating rising stem
– one-piece body design without cover
– design of the body is straight
– conical seat
– sealing sufrace is welded by hard facing (13Cr) or Stellite 6
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– control cone (for rough control) – type V43
– with external by-pass (for DN 80–150 standard in closed design)
– position indicator
– locking device

CATALOG SHEET

PN

160–400

DN

65–150

Pracovní teploty

-10–550 °C

Médium

water, steam, gas, oil, petroleum products, non-aggressive and aggressive substances

Materiál

1.4408, 1.7357, 1.0619

Připojení

flanged, weld ends, union nut, socket weld, combination

Ovládání

handwheel, gearbox, electric actuator, attachment fo pneumatic or hydraulic actuators, remote control
