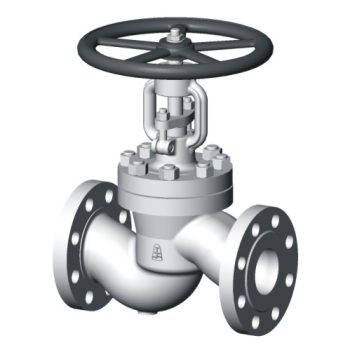

High-Pressure Shut-Off Globe Valve V30/V40

Description:
– shut-off globe valve V30 and shut-off globe valve with regulating disc V40
– design of the body straight
– rotating rising stem
– sealing surface is welded by hard facing (13Cr) or Stellite 6
– complies with the requirements of the directive 2014/68/EU and standard EN 13 709
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– control cone (for rough control) – type V40
– by-pass (balanced disc) for DN 65–150
– branch from forged steel – at the customer´s request
– position indicator
– limit switches
– PTFE – gland packing and bonnet gasket
– locking device
– according to TRD 201

CATALOG SHEET

PN

63–160

DN

50–150

Working temperature

-10–550 °C

Medium

water, steam, gas, oil, petroleum products, non-aggressive substances

Material

1.4408, 1.7357, 1.0619

Connection

flanged, weld ends, combination

Operating

handwheel, gearbox, electric actuator, attachment for pneumatic or hydraulic actuator, remote control
