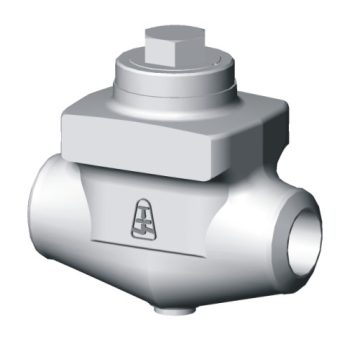

High-Pressure Lift Check Valve Z15.3

Description:
– PN 63-250, DN 65
– PN 320-630, DN 10-50
– design of the body is straight sealing
– sealing surface is welded by hard facing (13Cr) or Stellite 6
– complies with the requirements of the directive 2014/68/EU
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– without oil and grease
– with spring
– delivery on request according to TRD 201

CATALOG SHEET

PN

63–630

DN

10-65

Pracovní teploty

-196–600 °C

Médium

water, steam, non-aggressive substances

Materiál

1.0460, 1.5415, 1.7335, 1.7383, 1.4571, 1.4903

Připojení

weld ends, flanged, combination, socket weld

Ovládání

self-acting control
