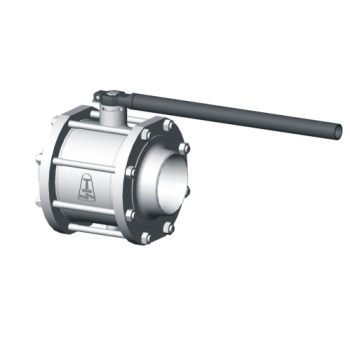

Ball Valve C05.1

Description:
– modular design
– full-flow
– closing element – stainless steel ball in PTFE seats
– gasket: PTFE, FPM
– low temperatures design
– complies with the requirements of the directive 2014/68/EU and standard EN 1983
– testing is carried out according to standard EN 12266-1; part 2

Design options:
– PN 10-63; DN 10-65; T max: 200 °C
– PN 10-25; DN 80-150; T max: 200 °C
– adjustment for actuator, flange according to ISO 5211
– seal elements change possible
– in the case of manual lever control the ball valve can be retrofitted by locking the open-closed positions with a padlock or positioner, witch reports the open-closed position remotely
– in the case of electric or pneumatic drive control, it can be retrofitted with other accessories, for example position limit switches

CATALOG SHEET

PN

10–63

DN

10–150

Working temperature

-196–200 °C

Medium

liquid, steam, gas and others

Material

1.0619, 1.4408 / special materials on request: A216WCB, A351CF-8M

Connection

weld ends, flanged, screw end (inside thread)

Operating

hand lever, gearbox, electric actuator, adjustment for pneumatic or hydraulic actuator
